The SHAKTIMAN Light Series Rotary Tiller is specially developed for wet land, light and medium soil.

It is designed to be light in weight but sturdy by structure which makes this Series most suitable for paddy fields.

All the parts are developed & manufactured with high-tech precision by using CNC machines, Laser cutting machines & Robotic Welding.

Machines are powder coated to make it rich with aesthetics.

It is resistant to corrosion, fading from sunlight, scratching, peeling, and cracking which maintains the machine in just-bought condition for long time.

Light Series is Recommended for wet cultivation and secondary application.

Optional:

  • Gear Box: Single Speed/Multi speed
  • Blades: C type/ J type / L type

  • Suitable for paddy in clay soil, delta belt, light soil (sand), medium light soil
  • Light in weight and sturdy structure
  • Best suitable for paddy fields

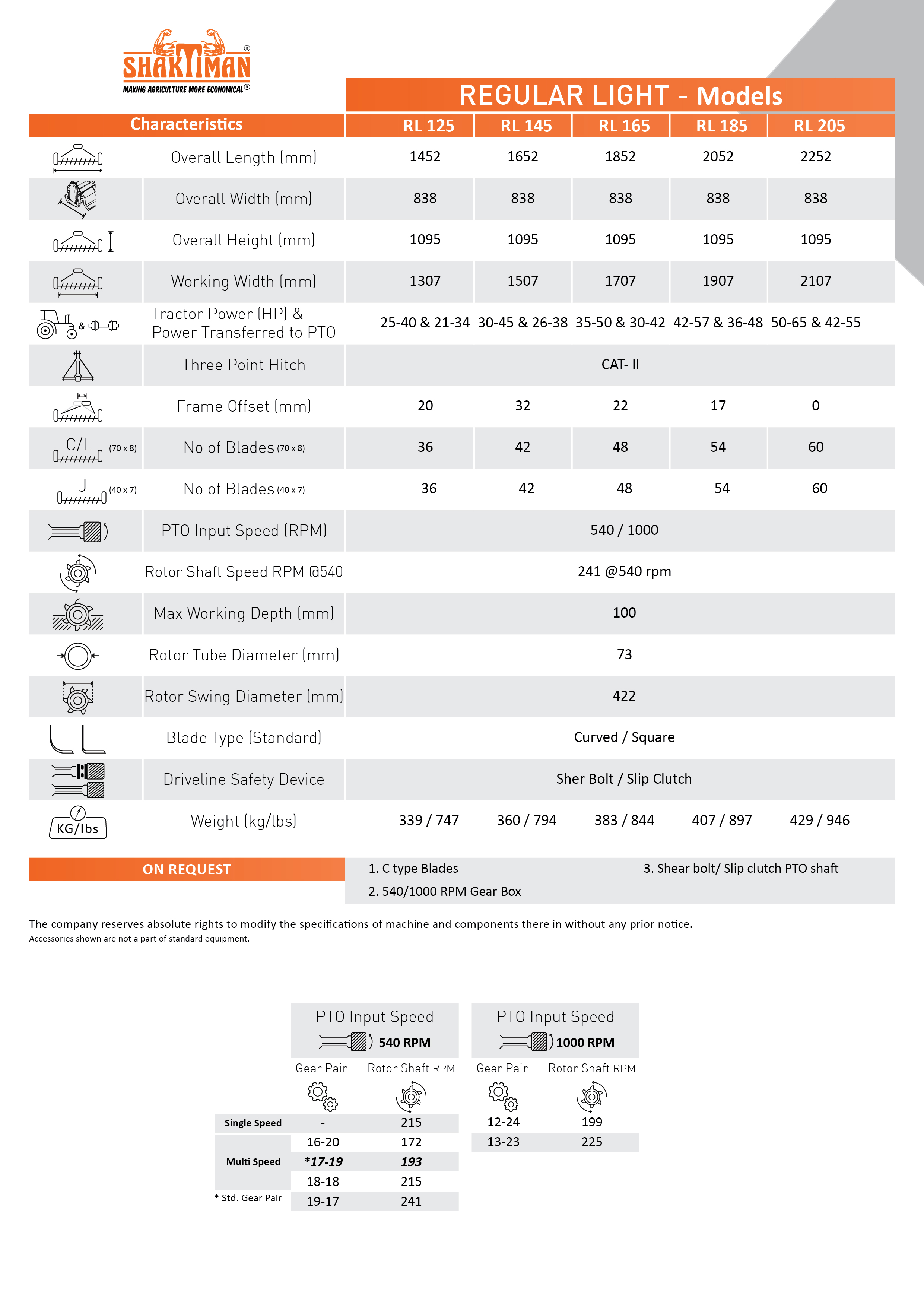

MODEL SRT – 1.25 SRT – 1.45 SRT – 1.65 SRT – 1.85 SRT – 2.05
Overall Length (mm) 1439 1652 1852 2052 2252
Overall Width (mm) 838
Overall Height (mm) 1095
Tilling Width (mm / inch) 1307 / 51.5 1507 / 59.3 1707 / 67.2 1907 / 75.1 2107 / 82.9
Tractor Power HP 25-40 30-45 35-50 42-57 50-65
Tractor Power Kw 19-30 22-33 26-37 31-42 37-48
3-Point Hitch Type Cat – II
Frame Off-set (mm / inch) 20 / 0.8 32 / 1.3 22 / 0.9 17 / 0.7 0
No. of Tines per Rotor (C/L-70×7 36 42 48 54 60
No. of Tines per Rotor (J-40×7)
(Bracket Type Rotor)
36 42 48 54 60
Standard Tine Construction Curved / Square
Transmission Type Gear
Max. Working Depth (mm / inch) 190 / 7.5
Rotor Tube Diameter (mm / inch) 73 / 2.9
Rotor Swing Diameter (mm / inch) 422 / 16.6
Driveline Safety Device Shear Bolt / Slip Clutch
Weight (Kg / lbs) 339 / 748 360 / 795 383 / 845 407 / 897 429 / 945

Rotor RPM chart

Series Input RPM Gear Box Spur Gear 1 Spur Gear 2 Rotor Speed
Regular
Light
(GD)
540 SS 215
MS 16 20 172
17 19 193
18 18 215
19 17 241
1000 MS 12 24 199
13 23 225

* The Company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.
