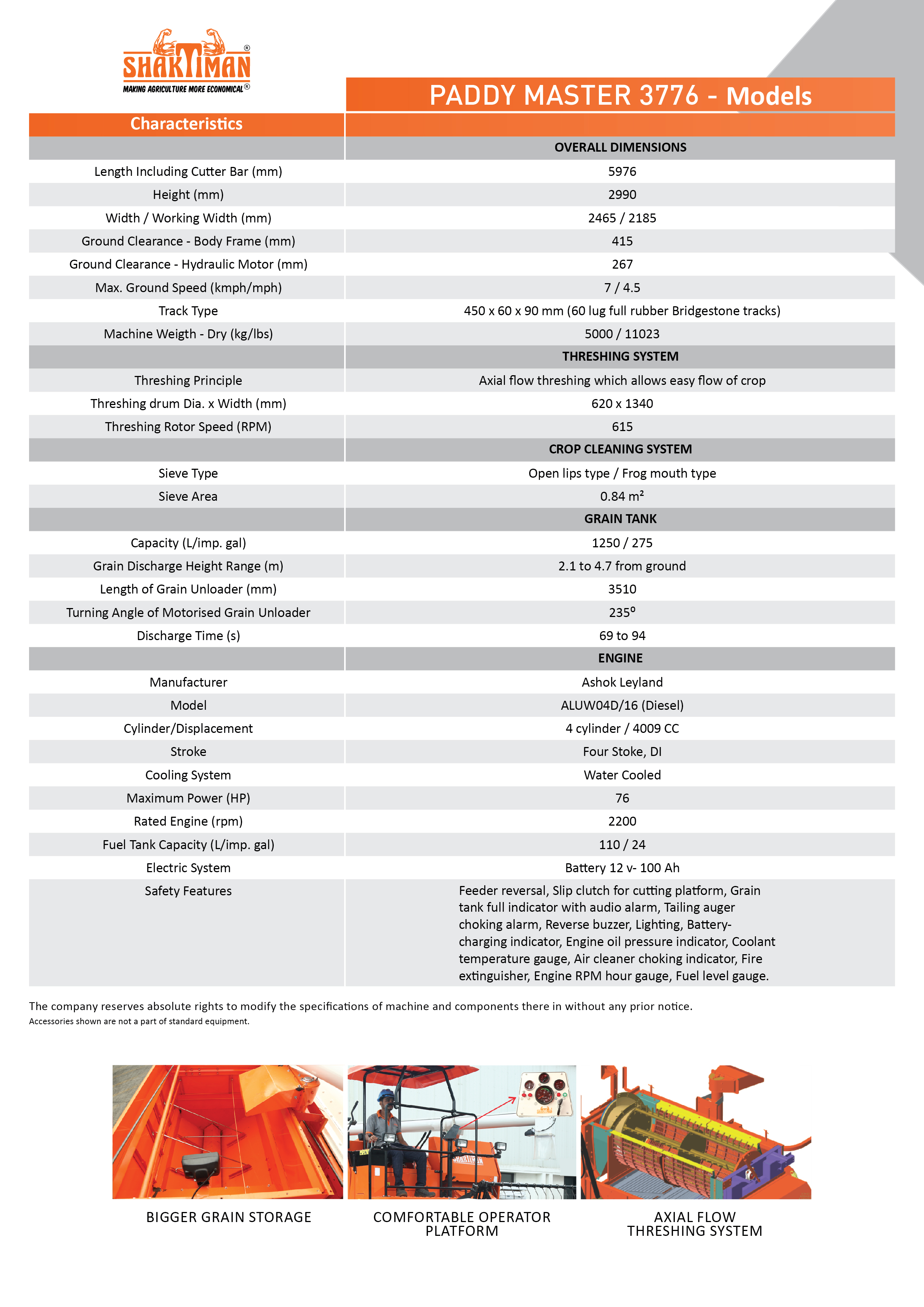

Paddy Master 3776

  • Paddy Master 3776 Paddy Master 3776
  • Paddy_master_3776 Paddy_master_3776
  • Paddy master 3776 Paddy master 3776

Cutter Bar – Working Width (mm) 2185
Threshing System
Threshing Principal Axial flow threshing allows easy flow of crop and gentel threshing
Threshing drum dia. & Width (mm) 620 x 1340
Threshinng Rotor Speed (rpm) 578
Track type 60 lug full rubber bridgestone tracks, suiatble for wet land
Crop cleaning system
Cleaning Principal Open lips type forced air cleaning
Sieve Case Length x width (mm) 1375 x 840
Grain Tank
Capacity (ltr.) 1250
Grain discharge height range (M) 2.2m to 4.5m from ground
Length of grain unloader (mm) 3553
Turning angle of grain unloader (deg.) 235
Discharge time (Sec.) 80 to 90
Engine
Manufaturer Ashok layland
Model ALUW04D/16
Cylinder/Dispalcement 4 Cylinder / 4009 CC
Stroke Four Stroke
Cooling System Water cooled
Rated Power (HP), Gross 76
Rated Engine (rpm) 2200
Fuel Tank Capacity (ltr) 110
Overall Dimension
Length Including Cutter Bar (mm) 5775
Height (mm) 2990
Width (mm) 2433
Ground Clearence body frame (mm) 415
Ground Clearence Hydraulic motor (mm) 260
Electric system
What type of systems are there Battery 12 V – 100 Ah.Graing tank full alarm, tailing
Auger choking alarm, Reverse buzzer, Lightings, battery charge indicator, engine oil pressure indicator, coolant temperature gauge.
Engine RPM & hour gauge, Fuel level gauge provided.
Machine Weight Dry (Kg) 4700

* The Company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.
