  • Suitable for all types of soils
  • Suitable for deep tillage especially for sugarcane & banana fields
  • Available in 4 ft – 11 ft width options

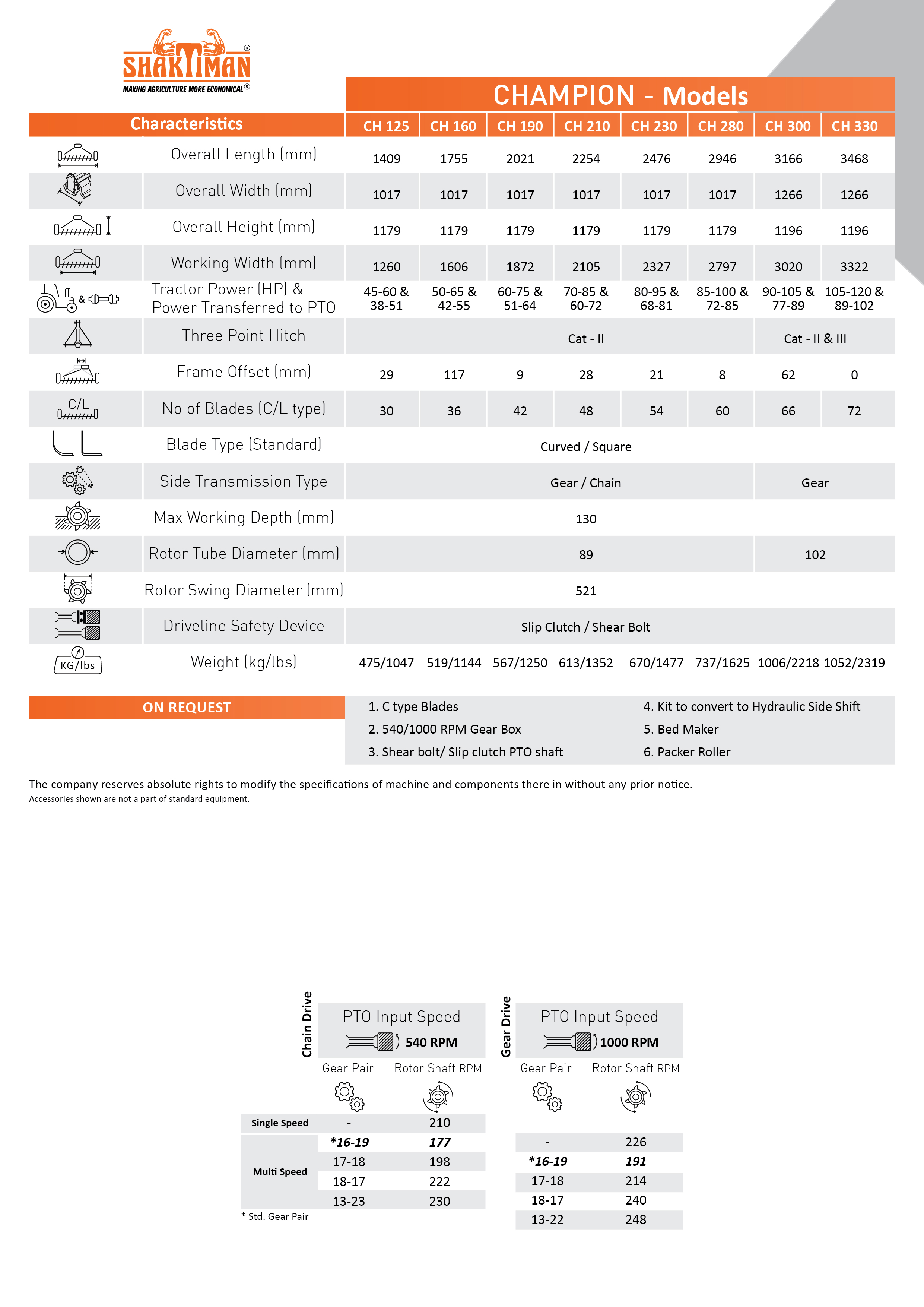

MODEL SRT-4 SRT-5 SRT-6 SRT-7 SRT-8 SRT-9 SRT-10 SRT-11
Overall Length (mm) 1409 1755 2021 2254 2476 2946 3166 3468
Overall Width (mm) 1017 1266
Overall Height (mm) 1179 1196
Tilling Width (mm / inch) 1260/49.6 1606/63.2 1872/73.7 2105/82.9 2327/91.6 2797/110 3020/118.9 3322/130.8
Tractor Power HP 45-60 50-65 60-75 70-85 80-95 85-100 90-105 105-120
Tractor Power Kw 34-45 37-48 45-56 52-63 60-71 64-75 67-78 78-89
3-Point Hitch Type Cat – II CAT-II & III
Frame Off-set (mm / inch) 29/1.1 117/4.6 9 / 0.4 28 / 1.1 21 / 0.8 8 / 0.3 62 / 2.4 0
No. of Tines (L/C-90×8) 30 36 42 48 54 60 66 72
Number of Tines (L/C-80×7) 30 36 42 48 54 60 66 72
Standard Tine Construction Curved / Square
Transmission Type Gear / Chain Gear
Max. Working Depth (mm / inch) 225/9
Rotor Tube Diameter (mm / inch) 89/3.5 102/4
Rotor Swing Diameter (mm / inch) 521 / 20.5
Driveline Safety Device Slip Clutch / Shear Bolt
Weight (Kg / lbs) 475/1047 519/1114 567/1250 613/1351 670/1477 737/1624 1006/2217 1052/2319

Rotor RPM chart

Series Input RPM Gear Box Spur Gear 1 Spur Gear 2 Rotor Speed
Cha
(CD)
540 SS 210
MS 16 19 177
17 18 198
18 17 222
1000 MS 13 22 230
Cha
(GD)
540 SS 226
MS 16 19 191
17 18 214
18 17 240
1000 MS 13 22 248

* The Company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.
