Sugarcane Harvester

  • Sugarcane Harvester 1. Sugarcane Harvester
  • Sugarcane Harvester Sugarcane Harvester
  • Sugarcane Harvester Sugarcane Harvester
  • Sugarcane Harvester Sugarcane Harvester

ADVANCED TRACKING SYSTEM

GPS enhancement provides SMS & web supervisor features which facilitate location of harvester and information on performance data.

AUTO CLEANING SYSTEM

This technology helps in cleaning the radiator at regular interval to remove the dust which can choke the radiator fins. Maintains engine temperature within limits.

CONTROL PANEL

Cabin has electronic controller which displays key performance parameters like :

  • Engine temperature
  • Hydraulic oil level & temperature
  • Fuel level
  • Battery voltage etc

HYDRAULIC SYSTEM

Robust hydraulic system run by efficient hydraulic motors & pumps ensuring flawless functioning of harvester.

(MAIN)BASE CUTTER

Heavy duty adjustable cutter cuts cane efficiently, both the blade holders rotate in opposite direction which cut the cane at ground level.

VISIBILITY

Curved profile of engine enclosure behind operator enable better rear view for driver to align with infielder or turning.

ROOF TOP AC

Efficient Air Conditioning, Highly comfortable to operator resulting in More Productivity

ENGINE ASSEMBLY

Six cylinders 174 HP water cooled diesel engine designed to perform optimum

FAN ASSEMBLY

Removes impurities like dirt, mud etc. from the canes before delivering into container. This dynamically balanced fan assembly ensures clean canes to sugar factories resulting in more recovery

DOUBLE CROP DIVIDER

This comes as a standard feature ensuring harvester takes cane from targeted row only & deflects cane from adjoining row to avoid chocking

STABILITY

It has rear tyres of 16.9 x 28 inch size which offers maximum stability and low soil compaction to facilitate working in challenging conditions.

OPERATOR CABIN

Air conditioned spacious cabin has comfortable driver seat with height adjustment & joy stick controls for individual functions.

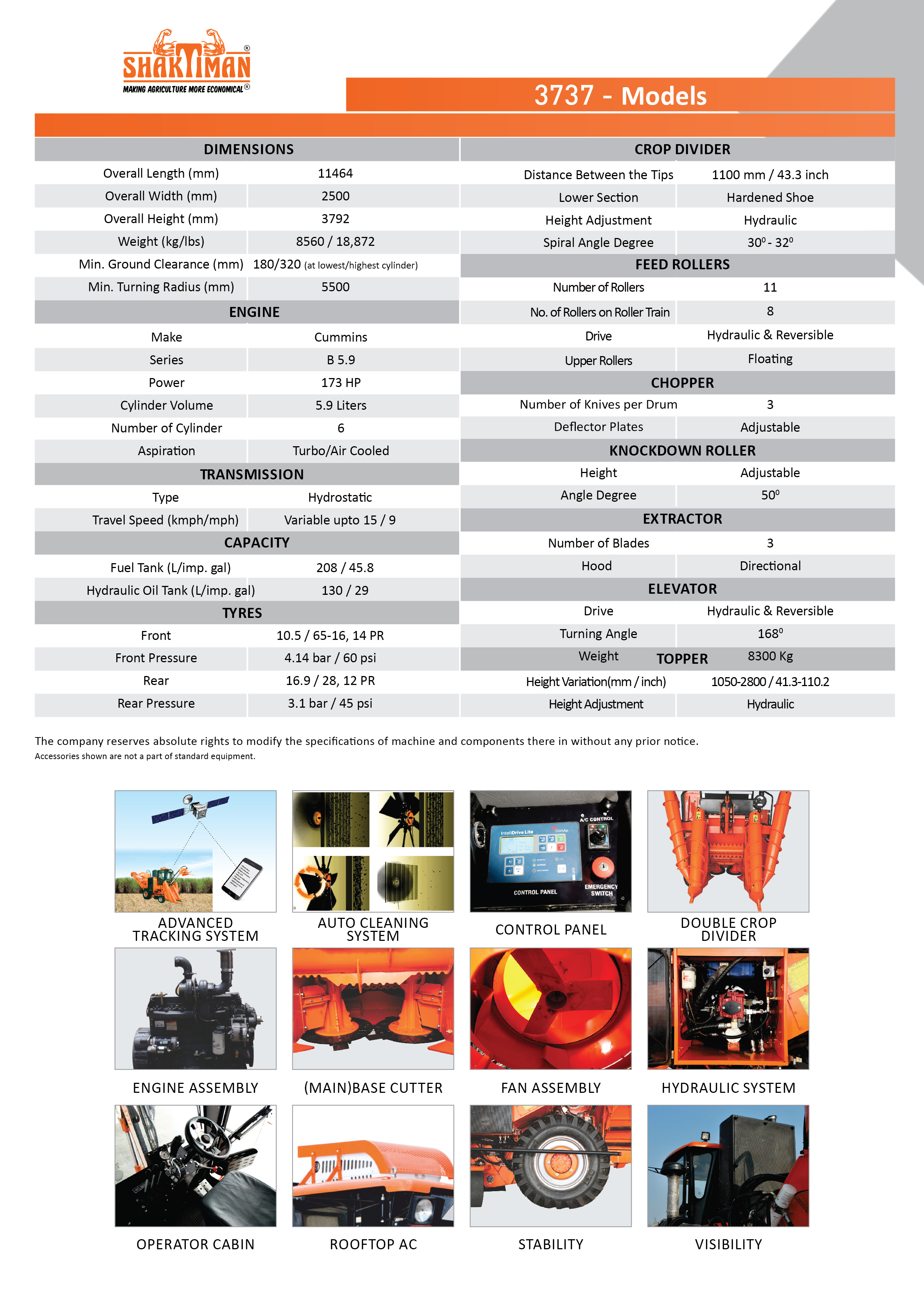

Engine
Make Cummins
Series B 5.9
Power 173 hp
Cylinder Volume 5.9 Liters
Number of Cylinder 6
Aspiration Turbo/After Cooler
Transmission
Type Hydrostatic
Travel Speed Variable up to 15 Km/hour
Capacity
Fuel Tank 208 Liters
Hydraulic Oil Tank 130 Liters
Tyres
Front 10.5 / 65-16, 14 PR
Rear 16.9 x 28, 12 PR
Topper
Height Variation(mm / inch) 1050-2800 / 41.3-110.2
Height Adjustment Hydraulic
Crop divider
Distance Between the Tips 1100 mm / 43.3 inch
Spiral Angle Degree 30o -32o
Height Adjustment Hydraulic
Lower Section Hardened Shoe
Feed rollers
Number of Rollers 11
Number of Rollers on the
Roller Train
8
Drive Hydraulic & Reversible
Upper Rollers Floating
Chopper
Number of Knives per Drum 3
Deflector Plates Adjustable
Knock down roller
Height Adjustable
Angle Degree 50o
Extractor
Number of Blades 3
Hood Directional
Elevator
Drive Hydraulic & Reversible
Turning Angle 168o
Weight 8300kg

* The Company reserves absolute rights to modify the specifications of machine and components therein without any prior notice.
